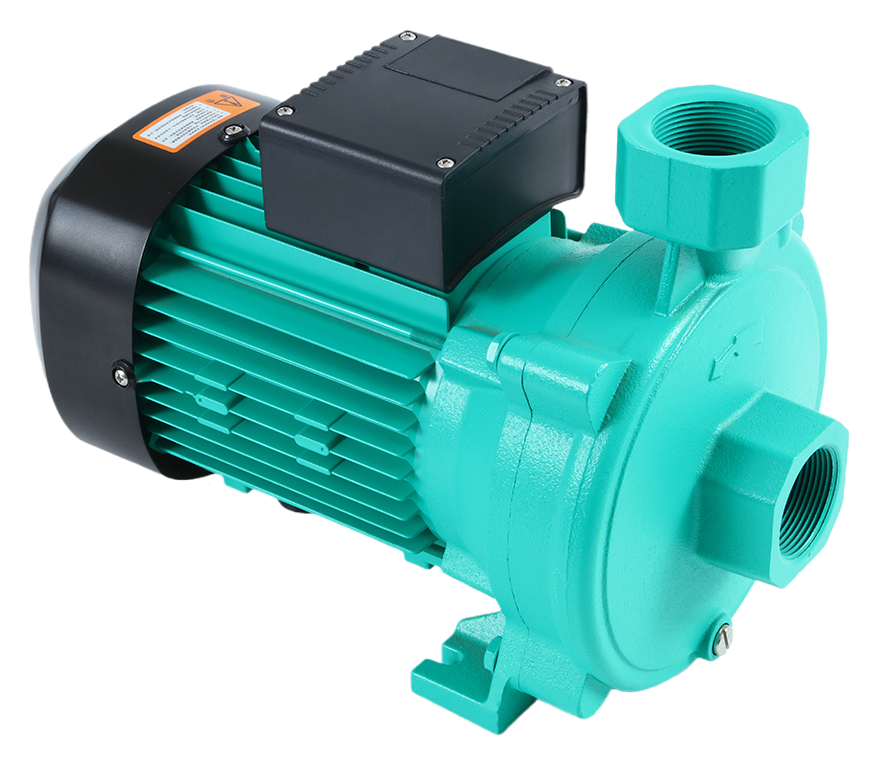

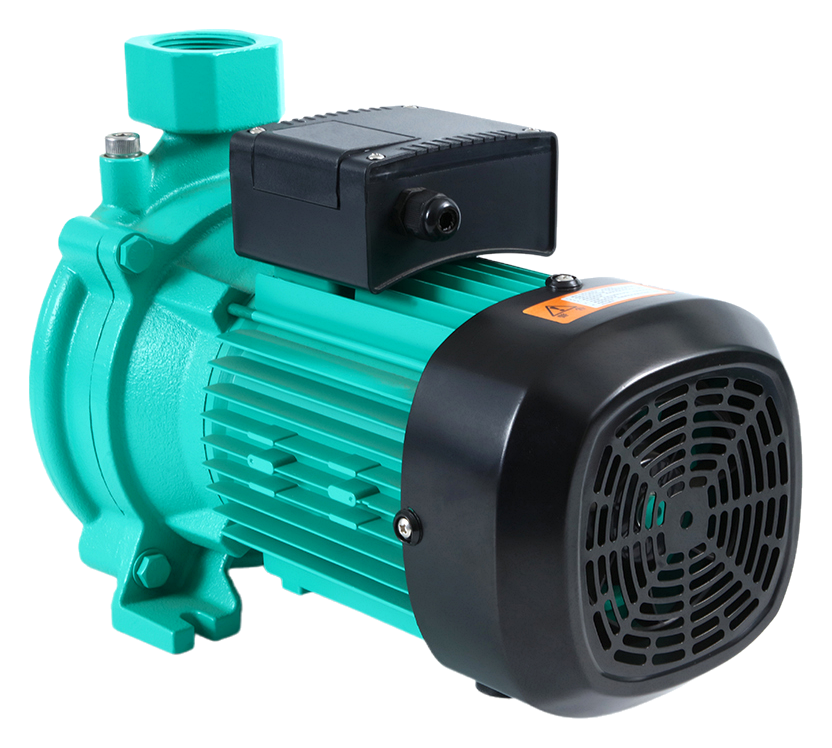

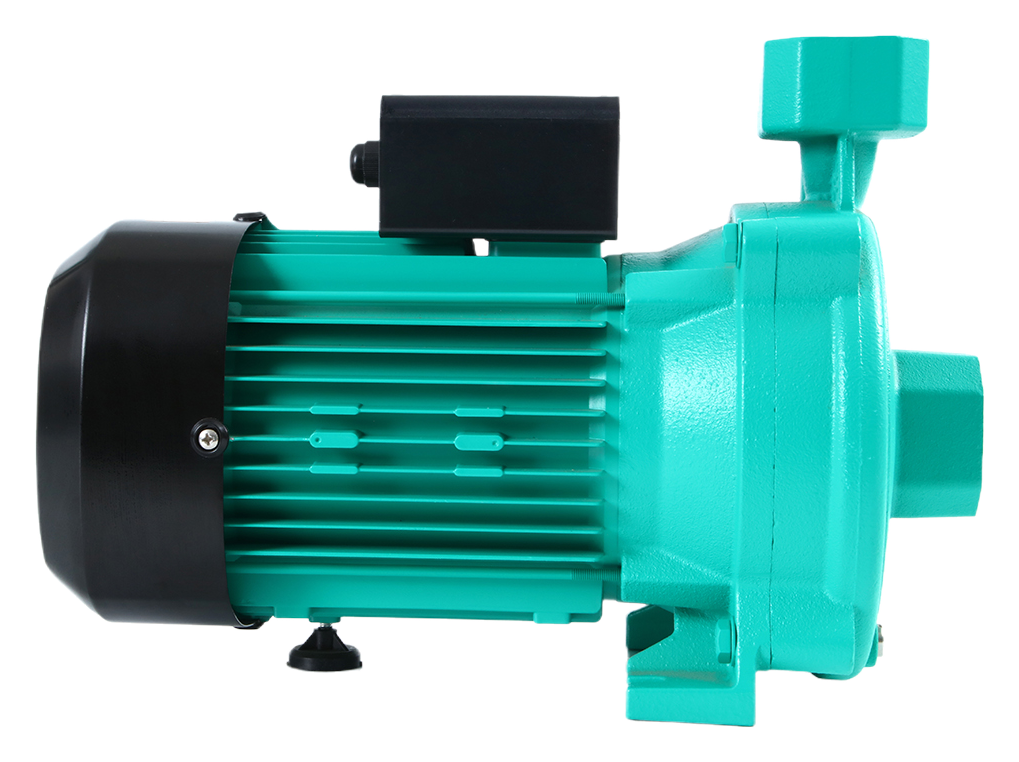

PUN Series Centrifugal Pump
Compact centrifugal pump for clean water transfer, domestic water supply, garden irrigation and light pressure boosting.
- Single-stage centrifugal pump structure for clean-water applications
- Suitable for transfer, supply, irrigation and light pressure boosting
- Compact installation for homes, gardens, shops and small building systems
- OEM / ODM supply support for distributors, contractors and project buyers
Description & Applications
For clean water transfer, domestic supply and light pressure boosting.
The PUN Series is a compact centrifugal pump range for clean-water duties that need practical flow and steady pressure from a simple pump structure. It is positioned for household water supply, tank-to-tap transfer, garden irrigation, small building water systems, distributor programs and OEM pump supply where clear model selection, straightforward installation and reliable daily operation matter.

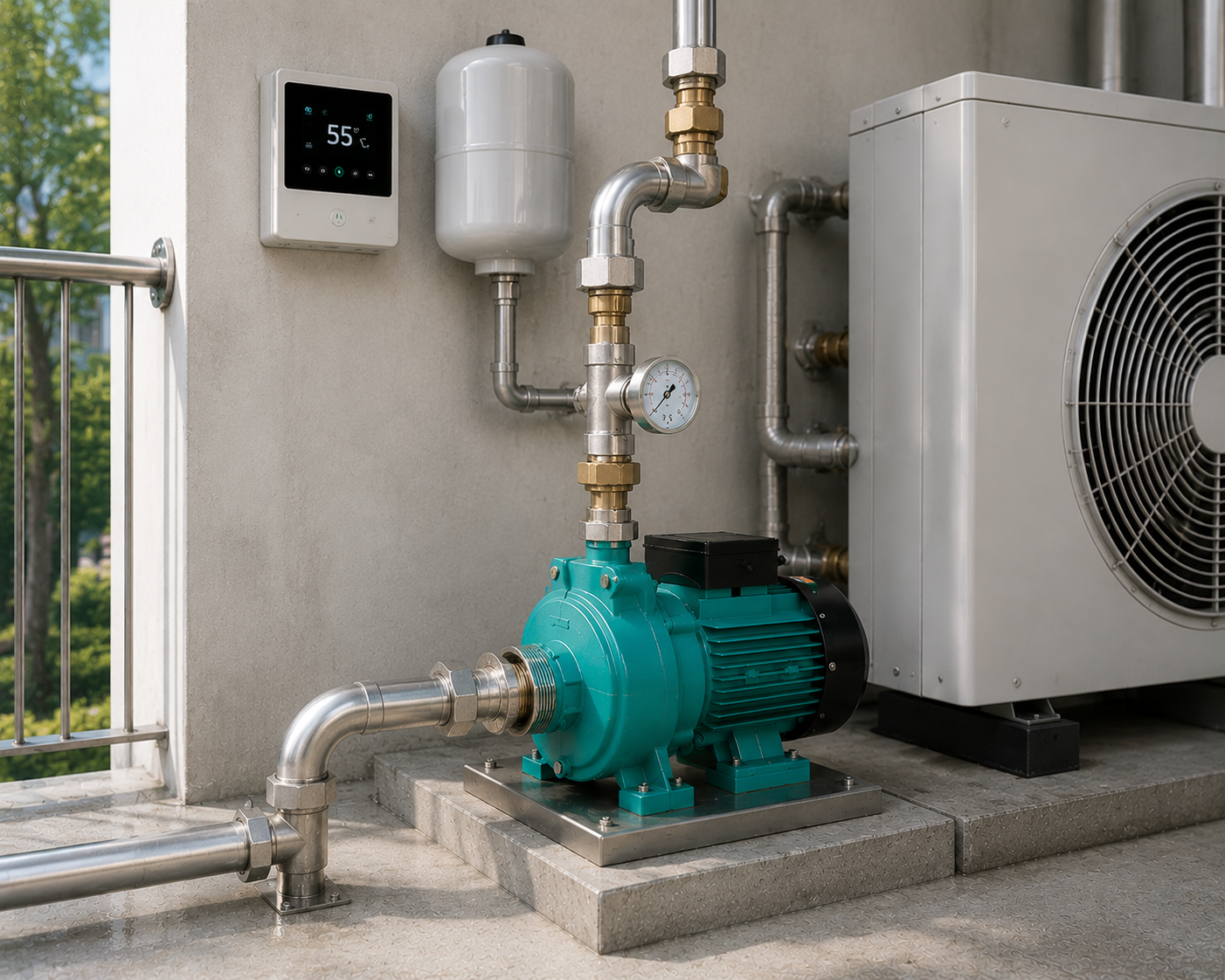

Application Scenarios
Where buyers commonly use this pump
Household Water Supply
For homes, apartments and utility rooms that need a compact centrifugal pump for clean water movement or light pressure support.
Garden and Irrigation Use
Supports garden watering, small irrigation points, tank water use and clean-water transfer around residential or light commercial spaces.
Small Building Water Systems
Useful for shops, service rooms and equipment supply points where a compact single-stage centrifugal pump is easier to install.
For Buyers & OEM Projects
Share your clean-water transfer, domestic supply or light pressure-boosting requirements and we will help confirm a suitable PUN model and configuration.
Information Needed for Selection
Please provide the medium, required flow, head, voltage/frequency and working temperature. Connection size, installation conditions and water-source details are also helpful.
OEM / ODM Options
Branded packaging, nameplates and selected pump configurations can be discussed after the model and application are reviewed.
MOQ & Samples
MOQ depends on the confirmed model. Larger pumps may be supplied from one unit; smaller models can be discussed as samples for qualified inquiries.
Documents & Certifications
After model and duty conditions are confirmed, relevant technical documents can be provided. Current certifications include CE, ISO and 3C; applicability is subject to the model and destination market.
Pump Selection
How to Select a Clean-Water Centrifugal Pump
Select a PUN model by matching required flow and total head to the clean-water transfer, domestic supply, garden irrigation or light pressure-boosting duty. Confirm the medium, temperature, suction conditions, connection size, voltage/frequency and installation arrangement before ordering.
Information for accurate selection
- Required flow and total head
- Clean-water transfer, supply or irrigation duty
- Suction conditions and connection size
- Voltage/frequency, quantity and OEM requirements
Pump Selection
How to Select a Self-Priming Peripheral Pump
Select a PUN Series pump by matching the pump duty to the system rather than choosing by power alone. This range is suitable for clean-water transfer and pressure-boosting systems. Please confirm flow and total head, liquid condition, suction arrangement, connection size and power supply before selection.
For OEM, distributor or project requirements, also tell us your destination market, expected quantity and branding or documentation requirements.
- Required flow and total head
- Liquid condition and operating temperature
- Connection, installation and local power supply
- Quantity and OEM, distributor or project requirements
Technical Data
PUN Model and Parameter Table
| Model | Phase | Voltage (V / Hz) | Power (kW) | Max. Head (m) | Rated Head (m) | Max. Flow (m3/h) | Rated Flow (m3/h) | Port Diameter (mm) | Impeller Material |
|---|---|---|---|---|---|---|---|---|---|
| PUN201EH | Single phase | 220 / 50 | 0.2 | 16 | 10 | 5 | 3 | 25 | PPO |
| PUN202EH | Single phase | 220 / 50 | 0.2 | 16 | 10 | 5 | 3 | 32 | PPO |
| PUN301EH | Single phase | 220 / 50 | 0.37 | 20 | 15 | 5.3 | 3 | 25 | PPO |
| PUN402EH | Single phase | 220 / 50 | 0.4 | 23 | 16 | 6.5 | 4 | 32 | PPO |
| PUN403EH | Single phase | 220 / 50 | 0.4 | 23 | 16 | 6.5 | 4 | 25 | PPO |
| PUN601EH | Single phase | 220 / 50 | 0.6 | 28 | 20 | 7.5 | 4 | 25 | PPO |
| PUN602EH | Single phase | 220 / 50 | 0.6 | 28 | 20 | 7.5 | 4 | 32 | PPO |
| PUN750EH | Single phase | 220 / 50 | 0.75 | 26 | 18 | 12 | 6.6 | 32 | PPO |
| PUN751EH | Single phase | 220 / 50 | 0.75 | 32 | 20 | 7.5 | 5 | 32 | Stainless steel |
| PUN1100EH | Single phase | 220 / 50 | 1.1 | 30 | 23 | 16 | 8 | 40 | Stainless steel |
| PUN1500EH | Single phase | 220 / 50 | 1.5 | 24 | 20 | 28 | 16 | 50 | Stainless steel |
| PUN601QH | Three phase | 380 / 50 | 0.6 | 28 | 20 | 7.5 | 4 | 25 | PPO |
| PUN602QH | Three phase | 380 / 50 | 0.6 | 28 | 20 | 7.5 | 4 | 32 | PPO |
| PUN750QH | Three phase | 380 / 50 | 0.75 | 26 | 18 | 12 | 6.6 | 32 | PPO |
| PUN751QH | Three phase | 380 / 50 | 0.75 | 32 | 20 | 7.5 | 5 | 32 | Stainless steel |
| PUN1100QH | Three phase | 380 / 50 | 1.1 | 30 | 23 | 16 | 8 | 40 | Stainless steel |
| PUN1500QH | Three phase | 380 / 50 | 1.5 | 24 | 20 | 28 | 16 | 50 | Stainless steel |
Selection & OEM FAQ
PUN Pump FAQ
What is a self-priming peripheral pump used for?
PUN pumps are suitable for clean-water transfer and pressure-boosting systems within the published operating limits. Confirm the liquid condition and required duty before selection.
How do I choose the right PUN model?
Start with required flow and total head, then check the liquid condition, temperature, connections, installation requirements and local voltage.
Can this pump support my application?
It can be considered for compatible duties when the required operating point and liquid condition match the pump curve and published limits.
Can you support OEM or project orders?
Model selection, technical confirmation, quotation and documentation can be discussed after the application, quantity and destination market are confirmed.
Send Your Duty Point for Model Selection
Share flow, total head, liquid condition and power supply to receive a PUN pump quotation.
