TD Series Multistage Pipeline Centrifugal Pump

Multistage pipeline centrifugal pump for clean water pressure boosting, high-head circulation and building utility systems.

Designed for clean water pressure boosting, circulation and pipeline transfer duties
Multistage centrifugal structure supports higher head in building-service systems
Pipeline installation layout helps save space in pump rooms and utility lines
OEM / ODM supply support for distributors, contractors and project buyers

Send Inquiry View Catalogs

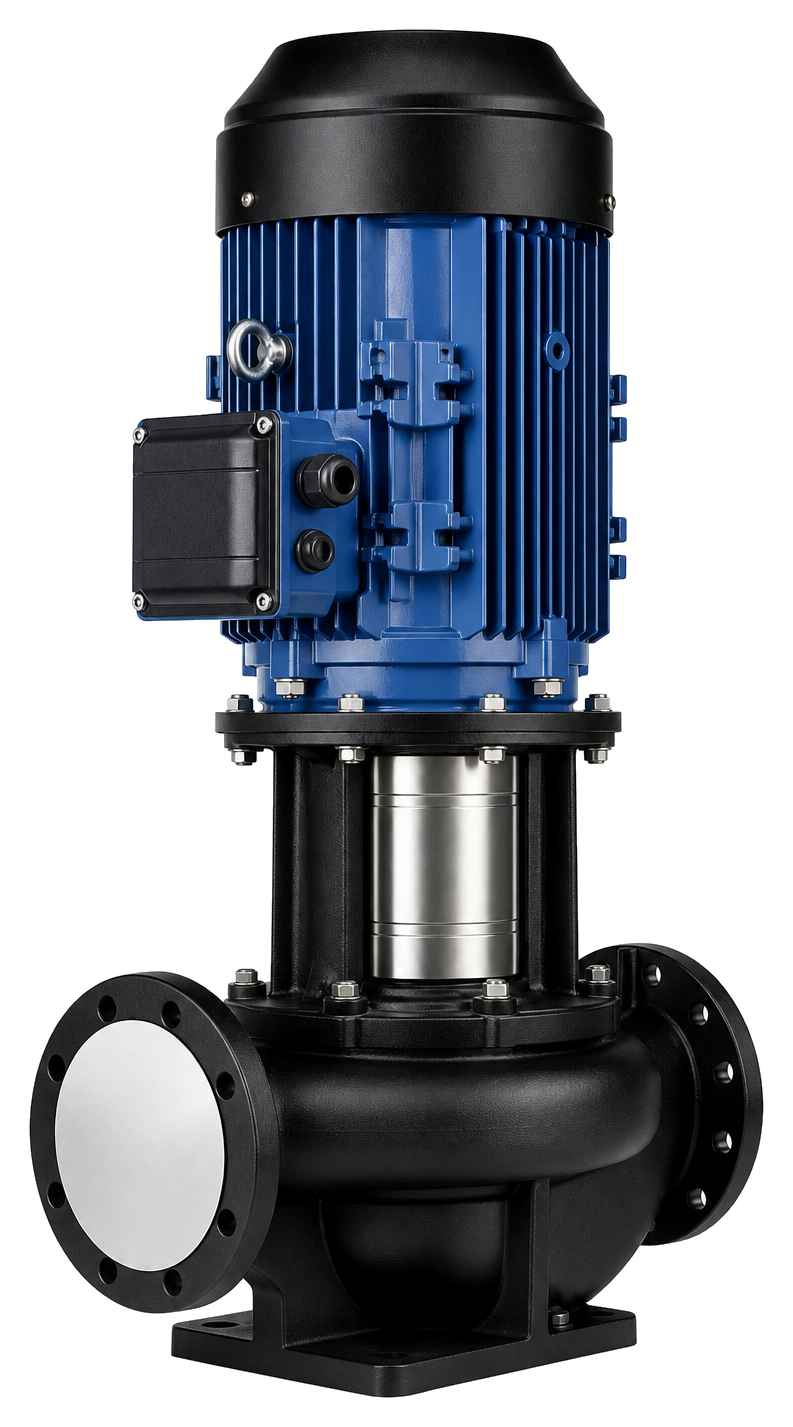

TD Series multistage pipeline centrifugal pump front view

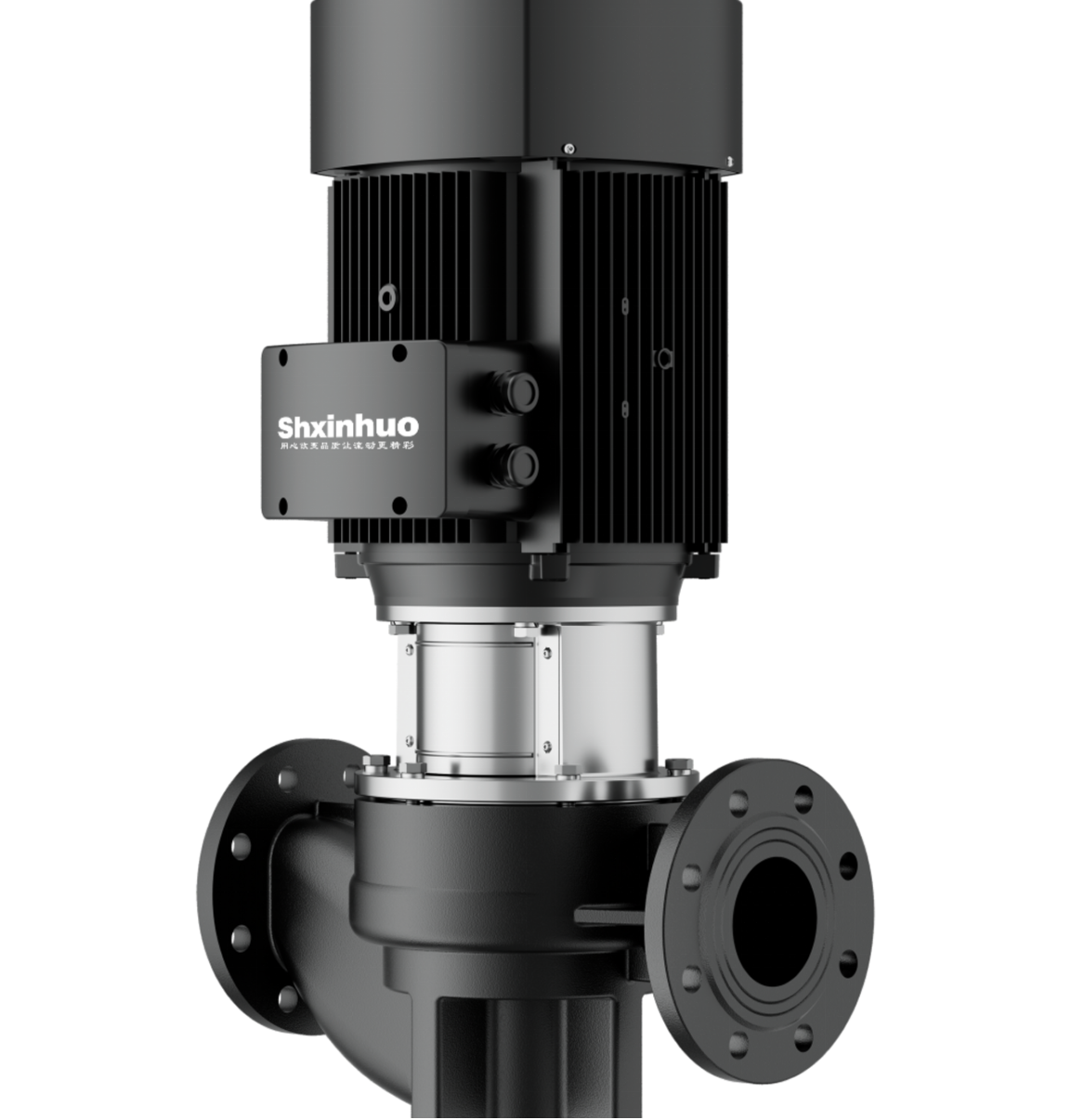

TD multistage inline pipeline pump side view

Description & Applications

For pressure boosting, high-head circulation and pipeline water transfer.

The TD Series is a multistage pipeline centrifugal pump range for clean-water systems that need stable flow with higher head through building-service pipelines. It is positioned for HVAC water circulation, pressure boosting, cooling water transfer, utility water supply, equipment circulation, commercial pump rooms, distributor programs and OEM pump supply where compact pipeline installation and clear model selection matter.

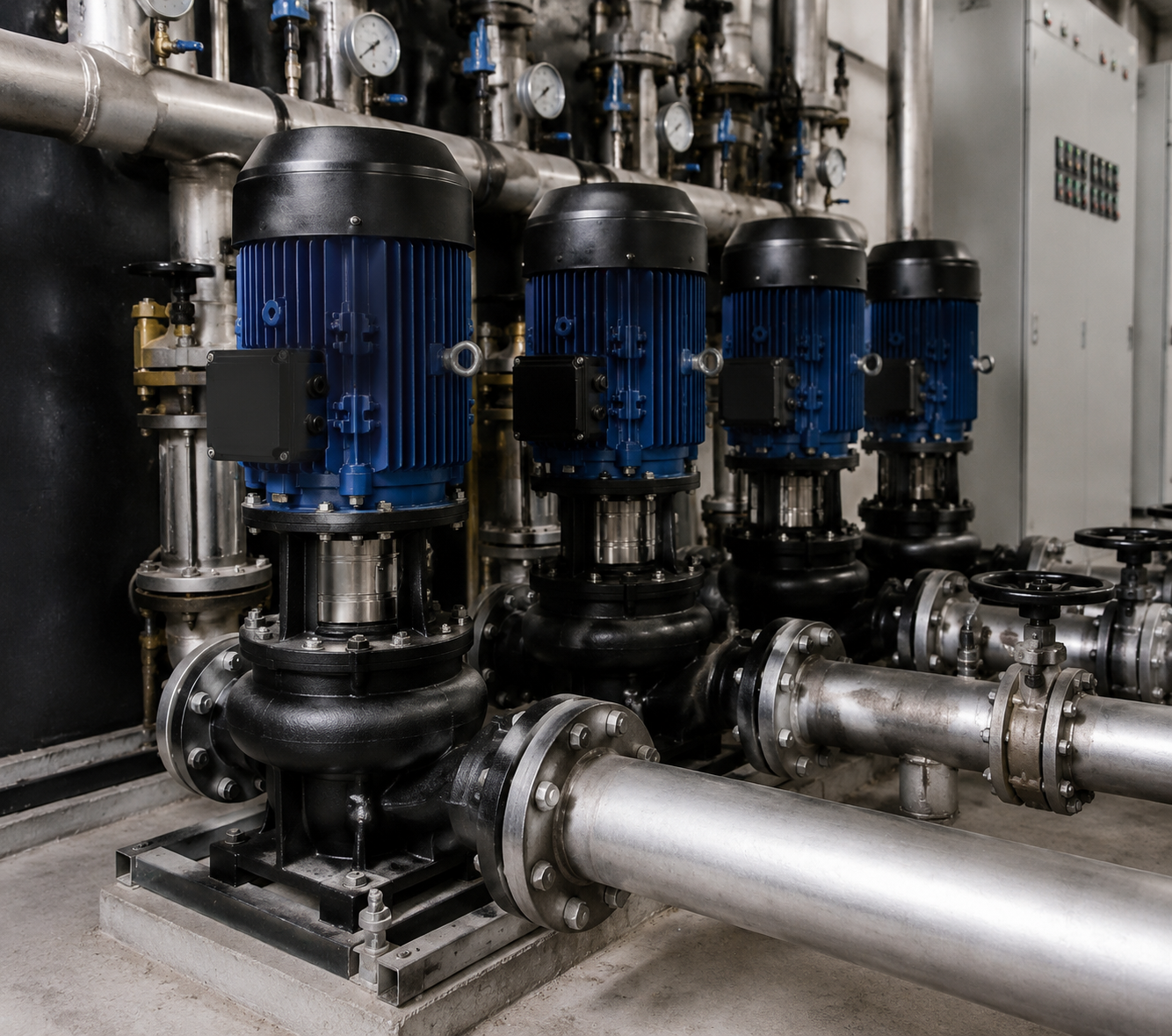

Building pressure boosting application for TD multistage pipeline centrifugal pump

High-head HVAC water circulation Supports heating and cooling water circulation in commercial buildings, equipment rooms and building-service systems where higher head is required.

Pressure boosting and water transfer Suitable for utility water transfer, tank-to-pipeline movement, pressure boosting and equipment supply lines where steady flow and head are required.

Distributor and project supply Useful for buyers comparing multistage pipeline pumps by flow range, head requirement, flange size, installation space and OEM / ODM documentation support.

Application Scenarios

Where buyers commonly use this pump

Commercial HVAC Systems

For heating and cooling water circulation in offices, apartments, hotels, shops and other projects that need higher pipeline head.

Pressure Boosting Systems

Supports clean water pressure boosting in pump rooms, equipment lines, tank connections and utility pipeline systems.

Building Service Pipelines

Useful where a compact multistage pipeline pump is preferred for stable flow, higher head and easier pipe alignment.

For Buyers & OEM Projects

Share your clean-water pressure-boosting, high-head circulation or pipeline-transfer requirements and we will help confirm a suitable TD model and configuration.

Information Needed for Selection

Please provide the medium, required flow, head, voltage/frequency and working temperature. Flange size, installation space and pressure requirements are also helpful.

OEM / ODM Options

Branded packaging, nameplates and selected pump configurations can be discussed after the model and application are reviewed.

MOQ & Samples

MOQ depends on the confirmed model. Larger pumps may be supplied from one unit; smaller models can be discussed as samples for qualified inquiries.

Documents & Certifications

After model and duty conditions are confirmed, relevant technical documents can be provided. Current certifications include CE, ISO and 3C; applicability is subject to the model and destination market.

Request a Quote

Pump Selection

How to Select a Multistage Pipeline Centrifugal Pump

Select a TD Series pump by matching the pump duty to the system rather than choosing by power alone. This range is suitable for clean-water pressure boosting, high-head circulation and building water supply. Please confirm flow and total head, liquid condition, temperature, pipeline connection, installation space and power supply before selection.

For OEM, distributor or project requirements, also tell us your destination market, expected quantity and branding or documentation requirements.

Required flow and total head
Liquid condition and operating temperature
Connection, installation and local power supply
Quantity and OEM, distributor or project requirements

Technical Data

Model and parameter table

Model	Flow (m3/h)	Head (m)	Speed (r/min)	Power (kW)
TD32-18/2	8	18	2900	1.1
TD32-21/2	12.5	21	2900	1.5
TD32-25/2	12.5	25	2900	2.2
TD32-32/2	12.5	32	2900	3
TD32-38/2	12.5	38	2900	4
TD32-50/2	12.5	50	2900	5.5
TD40-16/2	12.5	16	2900	1.1
TD40-20/2	12.5	20	2900	1.5
TD40-18/2	20	18	2900	2.2
TD40-25/2	20	25	2900	3
TD40-30/2	25	30	2900	4
TD40-25/2	25	25	2900	5
TD40-36/2	25	36	2900	5.5
TD40-48/2	25	48	2900	7.5
TD50-12/2	16	12	2900	1.1
TD50-15/2	20	15	2900	1.5
TD50-18/2	25	18	2900	2.2
TD50-24/2	25	24	2900	3
TD50-28/2	30	28	2900	4
TD50-32/2	12.5	32	2900	3
TD50-35/2	30	35	2900	5.5
TD50-38/2	12.5	38	2900	4
TD50-40/2	35	40	2900	7.5
TD50-48/2	12.5	48	2900	5.5
TD50-50/2	40	50	2900	11
TD50-60/2	50	60	2900	15
TD50-70/2	50	70	2900	18.5
TD50-81/2	50	81	2900	22
TD65-15/2	30	15	2900	2.2
TD65-19/2	30	19	2900	3
TD65-22/2	40	22	2900	4
TD65-30/2	40	30	2900	5.5
TD65-34/2	50	34	2900	7.5
TD65-36/2	25	36	2900	5.5
TD65-40/2	50	40	2900	11
TD65-48/2	25	48	2900	7.5
TD65-50/2	50	50	2900	15
TD65-61/2	50	61	2900	18.5
TD65-67/2	50	67	2900	22
TD65-83/2	50	83	2900	30
TD80-13/2	50	13	2900	3
TD80-18/2	50	18	2900	4
TD80-22/2	50	22	2900	5.5
TD80-28/2	50	28	2900	7.5
TD80-30/2	80	30	2900	11
TD80-38/2	80	38	2900	15
TD80-40/2	50	40	2900	11
TD80-47/2	80	47	2900	18.5
TD80-48/2	50	48	2900	15
TD80-54/2	80	54	2900	22
TD80-67/2	80	67	2900	30
TD100-9/2	50	9	2900	2.2
TD100-15/2	60	15	2900	4
TD100-17/2	80	17	2900	5.5
TD100-22/2	80	22	2900	7.5
TD100-27/2	100	27	2900	11
TD100-33/2	100	33	2900	15
TD100-40/2	100	40	2900	18.5
TD100-48/2	100	48	2900	22
TD100-52/2	130	52	2900	30
TD125-11/4	120	11	1450	5.5
TD125-14/4	120	14	1450	7.5
TD125-18/4	160	18	1450	11
TD125-22/4	160	22	1450	15
TD125-28/4	160	28	1450	18.5
TD125-32/4	160	32	1450	22
TD125-40/4	160	40	1450	30
TD150-17/4	200	17	1450	15
TD150-21/4	200	21	1450	18.5
TD150-25/4	200	25	1450	22
TD150-33/4	200	33	1450	30
TD150-40/4	200	40	1450	37
TD150-50/4	200	50	1450	45
TD200-12.5/4	400	12.5	1450	22
TD200-15/4	300	15	1450	18.5
TD200-18/4	300	18	1450	22
TD200-20/4	400	20	1450	30
TD200-23/4	400	23	1450	37
TD200-24/4	300	24	1450	30
TD200-27/4	400	27	1450	45
TD200-30/4	300	30	1450	37
TD200-32/4	400	32	1450	55
TD200-35/4	300	35	1450	45
TD200-43/4	400	43	1450	75
TD200-44/4	300	44	1450	55
TD200-50/4	400	50	1450	90
TD200-53/4	300	53	1450	75
TD250-15/4	500	15	1450	30
TD250-17/4	630	17	1450	45
TD250-18/4	500	18	1450	37
TD250-20/4	630	20	1450	55
TD250-21/4	500	21	1450	45
TD250-26/4	630	26	1450	75
TD250-27/4	500	27	1450	55
TD250-32/4	630	32	1450	90
TD250-36/4	500	36	1450	75
TD250-40/4	630	40	1450	110
TD250-44/4	500	44	1450	90
TD250-50/4	630	50	1450	132
TD250-53/4	500	53	1450	110
TD300-15/4	900	15	1450	55
TD300-20/4	900	20	1450	75

Selection & OEM FAQ

TD Pump FAQ

What is a multistage pipeline centrifugal pump used for?

TD pumps are suitable for clean-water pressure boosting, high-head circulation and building water supply within the published operating limits. Confirm the liquid condition and required duty before selection.

How do I choose the right TD model?

Start with required flow and total head, then check the liquid condition, temperature, connections, installation requirements and local voltage.

Can this pump support my application?

It can be considered for compatible duties when the required operating point and liquid condition match the pump curve and published limits.

Can you support OEM or project orders?

Model selection, technical confirmation, quotation and documentation can be discussed after the application, quantity and destination market are confirmed.

Send Your Duty Point for Model Selection

Share flow, total head, liquid condition and power supply to receive a TD pump quotation.
