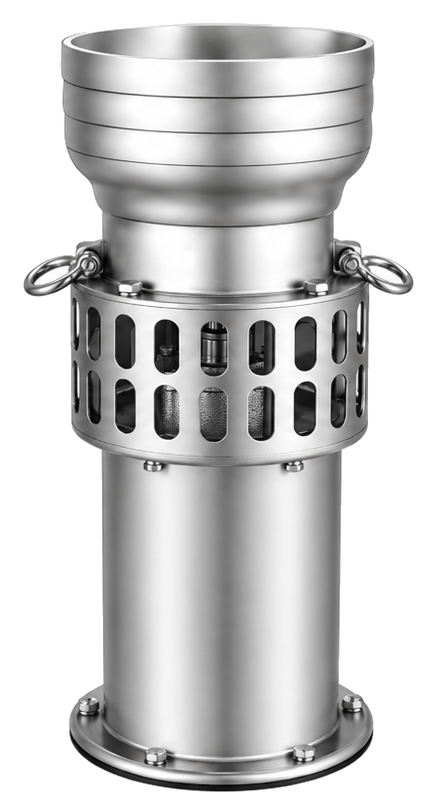

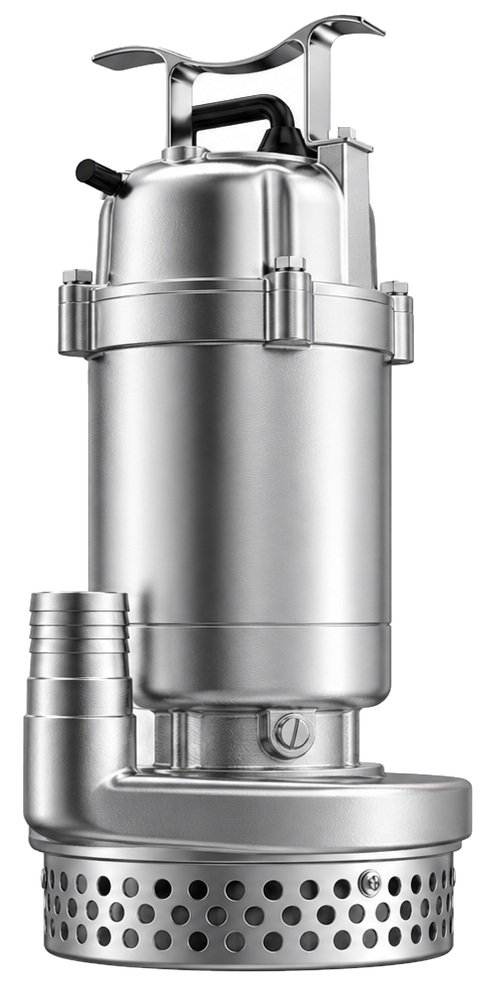

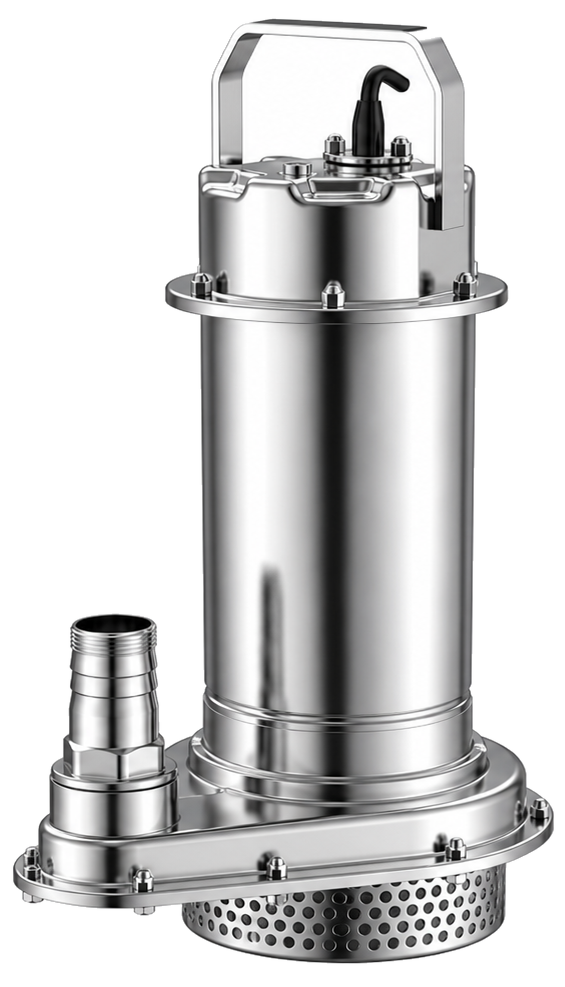

Stainless Steel Submersible Pump
Stainless steel submersible pump for clean water drainage, rainwater removal, sump pits and construction dewatering.
- Designed to operate while submerged in the pumped liquid
- Stainless steel construction for drainage and water-contact applications
- Suitable for clean water, rainwater, basement drainage and general dewatering duties
- OEM / ODM supply support for distributors, contractors and project buyers
Description & Applications
For clean water drainage, rainwater removal and utility dewatering.
This stainless steel submersible pump range is built for water-removal duties where the pump needs to work directly in the liquid. It is positioned for drainage pits, sump systems, rainwater collection, basement water removal, construction dewatering, utility water transfer, garden drainage, distributor programs and OEM pump supply where stainless construction, practical model selection and clear documentation matter.
Application Scenarios
Where buyers commonly use this pump

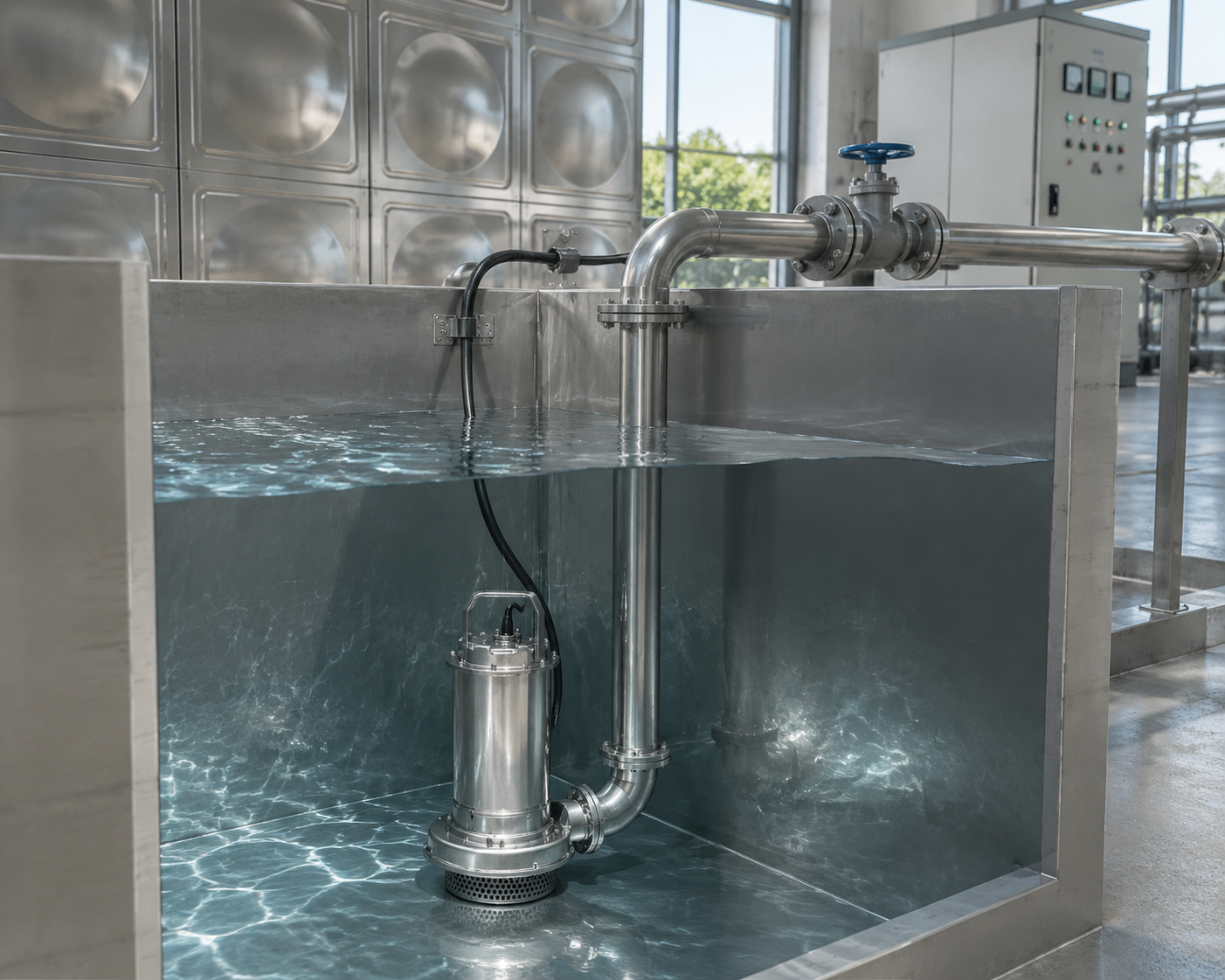

Building Drainage
For sump pits, basements, service rooms, utility rooms and drainage tanks that need reliable water removal.
Construction Dewatering
Supports temporary water removal from construction areas, maintenance pits, rainwater collection points and work sites.
Rainwater and Utility Drainage
Useful for rainwater collection points, garden drainage, utility water removal and low-debris drainage duties.
For Buyers & OEM Projects
Share your clean-water drainage, rainwater removal or dewatering requirements and we will help confirm a suitable submersible pump model and configuration.
Information Needed for Selection
Please provide the medium, required flow, head, voltage/frequency and working temperature. Installation depth, discharge connection and expected solids or debris conditions are also helpful.
OEM / ODM Options
Branded packaging, nameplates and selected pump configurations can be discussed after the model and application are reviewed.
MOQ & Samples
MOQ depends on the confirmed model. Larger pumps may be supplied from one unit; smaller models can be discussed as samples for qualified inquiries.
Documents & Certifications
After model and duty conditions are confirmed, relevant technical documents can be provided. Current certifications include CE, ISO and 3C; applicability is subject to the model and destination market.
Pump Selection
How to Select a Stainless Steel Submersible Pump
Select a Submersible Series pump by matching the pump duty to the system rather than choosing by power alone. This range is suitable for clean-water drainage, rainwater removal, sump pits and utility-water removal. Please confirm flow and total head, liquid condition, solids content, installation depth, cable length and power supply before selection.
For OEM, distributor or project requirements, also tell us your destination market, expected quantity and branding or documentation requirements.
- Required flow and total head
- Liquid condition and operating temperature
- Connection, installation and local power supply
- Quantity and OEM, distributor or project requirements
Technical Data
Model and parameter table
| No. | Model | Rated Flow (m3/h) | Rated Head (m) | Rated Power (kW) | Voltage (V) | Synchronous Speed (r/min) | Outlet Diameter (mm) |
|---|---|---|---|---|---|---|---|
| 1 | 25WQD3-9-0.37S | 3 | 9 | 0.37 | 220 | 2900 | 25 |
| 2 | 25WQD3-12-0.55S | 3 | 12 | 0.55 | 220 | 2900 | 25 |
| 3 | 32WQD4-10-0.55S | 4 | 10 | 0.55 | 220 | 2900 | 32 |
| 4 | 40WQD7-7-0.55S | 7 | 7 | 0.55 | 220 | 2900 | 40 |
| 5 | 50WQD10-6-0.55 | 10 | 6 | 0.55 | 220 | 2900 | 50 |
| 6 | 40WQD10-9-0.75 | 10 | 9 | 0.75 | 220 | 2900 | 40 |
| 7 | 50WQD12-8-0.75 | 12 | 8 | 0.75 | 220 | 2900 | 50 |
| 8 | 65WQD15-6-0.75 | 15 | 6 | 0.75 | 220 | 2900 | 65 |
| 9 | 40WQD8-15-1.1 | 8 | 15 | 1.1 | 220 | 2900 | 40 |
| 10 | 50WQD12-12-1.1 | 12 | 12 | 1.1 | 220 | 2900 | 50 |
| 11 | 65WQD20-6-1.1 | 20 | 6 | 1.1 | 220 | 2900 | 65 |
| 12 | 40WQD6-18-1.5 | 6 | 18 | 1.5 | 220 | 2900 | 40 |
| 13 | 50WQD15-12-1.5 | 15 | 12 | 1.5 | 220 | 2900 | 50 |
| 14 | 65WQD25-7-1.5 | 25 | 7 | 1.5 | 220 | 2900 | 65 |
| 15 | 25WQ3-9-0.37S | 3 | 9 | 0.37 | 380 | 2900 | 25 |
| 16 | 25WQ3-12-0.55S | 3 | 12 | 0.55 | 380 | 2900 | 25 |
| 17 | 32WQ4-10-0.55S | 4 | 10 | 0.55 | 380 | 2900 | 32 |
| 18 | 40WQ7-7-0.55S | 7 | 7 | 0.55 | 380 | 2900 | 40 |
| 19 | 50WQ10-6-0.55 | 10 | 6 | 0.55 | 380 | 2900 | 50 |
| 20 | 40WQ10-9-0.75 | 10 | 9 | 0.75 | 380 | 2900 | 40 |
| 21 | 50WQ12-8-0.75 | 12 | 8 | 0.75 | 380 | 2900 | 50 |
| 22 | 65WQ15-6-0.75 | 15 | 6 | 0.75 | 380 | 2900 | 65 |
| 23 | 40WQ8-15-1.1 | 8 | 15 | 1.1 | 380 | 2900 | 40 |
| 24 | 50WQ12-12-1.1 | 12 | 12 | 1.1 | 380 | 2900 | 50 |
| 25 | 65WQ20-6-1.1 | 20 | 6 | 1.1 | 380 | 2900 | 65 |
| 26 | 40WQ6-18-1.5 | 6 | 18 | 1.5 | 380 | 2900 | 40 |
| 27 | 50WQ15-12-1.5 | 15 | 12 | 1.5 | 380 | 2900 | 50 |
| 28 | 65WQ25-7-1.5 | 25 | 7 | 1.5 | 380 | 2900 | 65 |
| 29 | 100QYC65-10-3 | 65 | 10 | 3 | 380 | 2900 | 100 |
| 30 | 150QYC160-5-3 | 160 | 5 | 3 | 380 | 2900 | 150 |
| 31 | 100QYC65-15-4 | 65 | 15 | 4 | 380 | 2900 | 100 |
| 32 | 150QYC160-6-4 | 160 | 6 | 4 | 380 | 2900 | 150 |
| 33 | 200QYC200-4-4 | 200 | 4 | 4 | 380 | 2900 | 200 |
| 34 | 100QYC65-18-5.5 | 65 | 18 | 5.5 | 380 | 2900 | 100 |
| 35 | 150QYC160-8-5.5 | 160 | 8 | 5.5 | 380 | 2900 | 150 |
| 36 | 200QYC250-5-5.5 | 250 | 5 | 5.5 | 380 | 2900 | 200 |
| 37 | 100QYC65-25-7.5 | 65 | 25 | 7.5 | 380 | 2900 | 100 |
| 38 | 150QYC200-9-7.5 | 200 | 9 | 7.5 | 380 | 2900 | 150 |
| 39 | 200QYC250-6-7.5 | 250 | 6 | 7.5 | 380 | 2900 | 200 |
| 40 | QDX1.5-17-0.37S | 1.5 | 17 | 0.37 | 220 | 2860 | 25 |
| 41 | QDX3-18-0.55S | 3 | 18 | 0.55 | 220 | 2860 | 25 |
| 42 | QDX6-14-0.55S | 6 | 14 | 0.55 | 220 | 2860 | 40 |
| 43 | QDX10-12-0.55S | 10 | 12 | 0.55 | 220 | 2860 | 50 |
| 44 | QDX3-26-0.75S | 3 | 26 | 0.75 | 220 | 2860 | 25 |
| 45 | QDX6-18-0.75S | 6 | 18 | 0.75 | 220 | 2860 | 40 |
| 46 | QDX10-16-0.75S | 10 | 16 | 0.75 | 220 | 2860 | 50 |
| 47 | QDX6-24-1.1S | 6 | 24 | 1.1 | 220 | 2860 | 40 |
| 48 | QDX10-18-1.1S | 10 | 18 | 1.1 | 220 | 2860 | 50 |
| 49 | QDX6-32-1.5S | 6 | 32 | 1.5 | 220 | 2860 | 40 |
| 50 | QDX10-24-1.5S | 10 | 24 | 1.5 | 220 | 2860 | 50 |
| 51 | QDX10-34-2.2S | 10 | 34 | 2.2 | 220 | 2860 | 50 |
| 52 | QX1.5-17-0.37S | 1.5 | 17 | 0.37 | 380 | 2900 | 25 |
| 53 | QX3-18-0.55S | 3 | 18 | 0.55 | 380 | 2900 | 25 |
| 54 | QX6-14-0.55S | 6 | 14 | 0.55 | 380 | 2900 | 40 |
| 55 | QX10-12-0.55S | 10 | 12 | 0.55 | 380 | 2900 | 50 |
| 56 | QX3-26-0.75S | 3 | 26 | 0.75 | 380 | 2900 | 25 |
| 57 | QX7-20-0.75S | 7 | 20 | 0.75 | 380 | 2900 | 40 |
| 58 | QX10-16-0.75S | 10 | 16 | 0.75 | 380 | 2900 | 50 |
| 59 | QX6-24-1.1S | 6 | 24 | 1.1 | 380 | 2900 | 40 |
| 60 | QX10-18-1.1S | 10 | 18 | 1.1 | 380 | 2900 | 50 |
| 61 | QX6-32-1.5S | 6 | 32 | 1.5 | 380 | 2900 | 40 |
| 62 | QX10-24-1.5S | 10 | 24 | 1.5 | 380 | 2900 | 50 |
| 63 | QX10-34-2.2S | 10 | 34 | 2.2 | 380 | 2900 | 50 |
| 64 | QX10-40-3S | 10 | 40 | 3 | 380 | 2900 | 50 |
| 65 | QX10-52-4S | 10 | 52 | 4 | 380 | 2900 | 50 |
| 66 | QX10-62-5.5S | 10 | 62 | 5.5 | 380 | 2900 | 50 |
| 67 | QX10-72-7.5S | 10 | 72 | 7.5 | 380 | 2900 | 50 |
Selection & OEM FAQ
Submersible Pump FAQ
What is a stainless steel submersible pump used for?
Submersible pumps are suitable for clean-water drainage, rainwater removal, sump pits and utility-water removal within the published operating limits. Confirm the liquid condition and required duty before selection.
How do I choose the right Submersible model?
Start with required flow and total head, then check the liquid condition, temperature, connections, installation requirements and local voltage.
Can this pump support my application?
It can be considered for compatible duties when the required operating point and liquid condition match the pump curve and published limits.
Can you support OEM or project orders?
Model selection, technical confirmation, quotation and documentation can be discussed after the application, quantity and destination market are confirmed.
Send Your Duty Point for Model Selection
Share flow, total head, liquid condition and power supply to receive a Submersible pump quotation.
